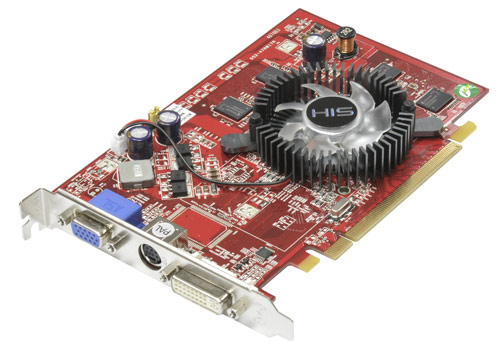

HIS X1650Pro iCooler II 512MB/ 256MB (128bit) DDR2 PCIe
  • X1650_iCoolerII_DDR2_700
Product Code H165PF256P
H165PF512P
EAN Code 4895139000887
Cooler iCooler II
GPU 1650Pro
Core Clock 600 MHz
Memory Clock 800 MHz
Memory Size 512/ 256 MB
Memory Type DDR2
Memory Interface 128 / 64(For 256MB only) bit
Interface PCI-Express x16
Availability Discontinued




  • Powered by ATI Radeon X1650Pro - 600MHz
  • 512MB-128bit 4 channel DDR2 memory - 800MHz Or
    256MB-128bit / 64bit 4 channel DDR2 memory - 800MHz
  • 12 Pixel shader processor
  • 5 Vertex shader processor
  • 8 Geometry Pipelines
  • Ultra-threaded SM 3.0 Engine
  • 256-bit Ring-bus
  • ATI AvivoTM
  • High Precision Architecture
  • CrossFireTMSupport
  • PCI Express® x16 lane native support
CHIPSET FEATURES
  • RV530 90nm / RV535 80nm process
  • Vertex and Pixel Shader 3.0
  • 10bit Native Display Quality
  • Dynamic Flow Control
  • 128-bit FP32 Processing
  • 1024 instruction slots Shaders
  • 128-way Ultra-threaded dispatch processor
  • 256-bit Ring Bus
  • High Dymanic Range rendering
  • All stage Trilinear (16X) Anisotropic Filtering
  • Full (HQ) Anisotropic Filtering
  • 12X Temporal Max. MSAA
  • 6X Adaptive AA
  • Parallax Occlusion Mapping
  • 12-tap error-free Dynamic Soft Shadows
  • RMX/RMC
  • H.264 Accelerated
  • DL-DVI
  • CrossFireTM support
  • DirectX® 9 and OpenGL® supported
HIS PRODUCTS ADVANTAGE
  • HIS delivers Faster, Cooler, Quieter plus the best quality product!
  • Platinum packing with software bundle
  • Professional customer service and technical support
ACCESSORIES
SOFTWARE BUNDLED
CABLE/ADAPTOR BUNDLED
    Platinum Pack Cable Bundling:
  • S-Video Cable
  • Conversion Cable Mini-Din to RCA
  • HDTV Output cable
  • DVI to VGA Dongle


  • - No cable bundling in Small Box Pack
Model Name
HIS X1650Pro iCooler II 512MB/ 256MB (128bit) DDR2 PCIe Dual Link DVI & TV (RoHS)
Chipset
Radeon X1650 PCIe Series
ASIC
RV530 / RV535
Pixel Pipelines
12
Vertex Engines
5
Manu. Process (Micron)
90nm / 80nm
Transistor
157M
Fill Rate
7.2GPixel/s
Memory Size (MB)
512/256
Memory Type
DDR2
RAMDAC (MHz)
400 Dual
Engine CLK (MHz)
600
Memory CLK (MHz)
800
Memory Interface (bit)
128 / 64(For 256MB only)
Memory Bandwidth
12.8GB/s or 6.4GB/s
Max. Resolution
2560x1600
Bus Interface
PCI-Express x16
VGA
Yes
2nd VGA
No
DVI
Yes
2nd DVI
No
TV-out
Yes
HDTV (YPrPb component output)
Yes
Video-in
No
TV Tuner
No
FM Tuner
No

Radeon™ X1650 Graphics Technology - GPU Specifications

Features
  • Dual-link DVI
  • Twelve pixel shader processors
  • Five vertex shader processors
  • 128-bit 4-channel DDR/DDR2/GDDR3 memory interface
  • Native PCI Express x16 bus interface
  • AGP 8x configurations also supported with AGP-PCI-E external bridge chip
  • Dynamic Voltage Control
Ring Bus Memory Controller
  • 256-bit internal ring bus for memory reads
  • Programmable intelligent arbitration logic
  • Fully associative texture, color, and Z/stencil cache designs
  • Hierarchical Z-buffer with Early Z test
  • Lossless Z Compression (up to 48:1)
  • Fast Z-Buffer Clear
  • Z/stencil cache optimized for real-time shadow rendering
Ultra-Threaded Shader Engine
  • Support for Microsoft® DirectX® 9.0 Shader Model 3.0 programmable vertex and pixel shaders in hardware
  • Full speed 128-bit floating point processing for all shader operations
  • Up to 128 simultaneous pixel threads
  • Dedicated branch execution units for high performance dynamic branching and flow control
  • Dedicated texture address units for improved efficiency
  • 3Dc+ texture compression
    • High quality 4:1 compression for normal maps and two-channel data formats
    • High quality 2:1 compression for luminance maps and single-channel data formats
  • Multiple Render Target (MRT) support
  • Render to vertex buffer support
  • Complete feature set also supported in OpenGL® 2.0
Advanced Image Quality Features
  • 64-bit floating point HDR rendering supported throughout the pipeline
    • Includes support for blending and multi-sample anti-aliasing
  • 32-bit integer HDR (10:10:10:2) format supported throughout the pipeline
    • Includes support for blending and multi-sample anti-aliasing
  • 2x/4x/6x Anti-Aliasing modes
    • Multi-sample algorithm with gamma correction, programmable sparse sample patterns, and centroid sampling
    • New Adaptive Anti-Aliasing feature with Performance and Quality modes
    • Temporal Anti-Aliasing mode
    • Lossless Color Compression (up to 6:1) at all resolutions, including widescreen HDTV resolutions
  • 2x/4x/8x/16x Anisotropic Filtering modes
    • Up to 128-tap texture filtering
    • Adaptive algorithm with Performance and Quality options
  • High resolution texture support (up to 4k x 4k)
Avivo™ Video and Display Platform
  • High performance programmable video processor
    • Accelerated MPEG-2, MPEG-4, DivX, WMV9, VC-1, and H.264 decoding and transcoding
    • DXVA support
    • De-blocking and noise reduction filtering
    • Motion compensation, IDCT, DCT and color space conversion
    • Vector adaptive per-pixel de-interlacing
    • 3:2 pulldown (frame rate conversion)
  • Seamless integration of pixel shaders with video in real time
  • HDR tone mapping acceleration
    • Maps any input format to 10 bit per channel output
  • Flexible display support
    • DVI 1.0 compliant / HDMI interoperable and HDCP ready**
    • Dual integrated 10 bit per channel 400 MHz DACs
    • 16 bit per channel floating point HDR and 10 bit per channel DVI output
    • Programmable piecewise linear gamma correction, color correction, and color space conversion (10 bits per color)
    • Complete, independent color controls and video overlays for each display
    • High quality pre- and post-scaling engines, with underscan support for all outputs
    • Content-adaptive de-flicker filtering for interlaced displays
    • Xilleon™ TV encoder for high quality analog output
    • YPrPb component output for direct drive of HDTV displays
    • Spatial/temporal dithering enables 10-bit color quality on 8-bit and 6-bit displays
    • Fast, glitch-free mode switching
    • VGA mode support on all outputs
    • Drive two displays simultaneously with independent resolutions and refresh rates
  • Compatible with ATI TV/Video encoder products, including Theater 550
CrossFire™
  • Multi-GPU technology
  • Four modes of operation:
    • Alternate Frame Rendering (maximum performance)
    • Supertiling (optimal load-balancing)
    • Scissor (compatibility)
    • Super AA 8x/10x/12x/14x (maximum image quality)
  • Native CrossFire support simplifies setup by requiring no dedicated slave or master hardware
  • 24-bit CrossFire connection enables high resolutions and refresh rates
  • Supports the broadest range of platforms for both Intel and AMD

Windows® Logo Program compliant

ATI Catalyst™ Software Suite
