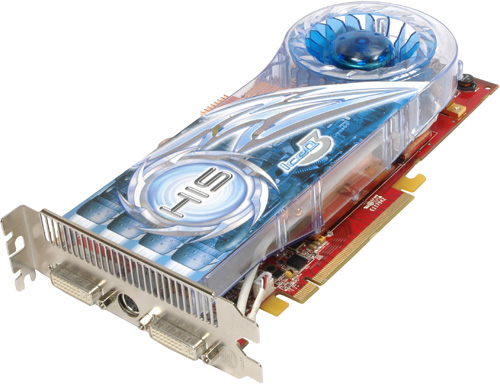

HIS X1950XT IceQ3 Turbo Dual DL-DVI VIVO 256MB GDDR3 PCIe
  • X1950XTIceQ3T-card_500.jpg
  • X1950XTIceQ3T-3DBox_250.jpg
Product Code H195XTQT256DV-R
GPU 1950XT
Core Clock 650 MHz
Memory Clock 1800 MHz
Memory Size 256 MB
Memory Type GDDR3
Memory Interface 256 bit
Interface PCIe
Availability Discontinued


  • Powered by ATI Radeon X1950XT - 650MHz
  • 256MB-256bit 8 channel GDDR3 memory - 1.8GHz
  • 48 Pixel shader processor
  • 8 Vertex shader processor
  • Ultra-threaded SM 3.0 Engine
  • 512-bit Ring-bus
  • ATI Avivoℿ/li>
  • High Precision Architecture
  • CrossFireℿSupport
  • PCI Express® x16 lane native support
  • R580+ process
  • 48 Pixel Shader Processors
  • Vertex and Pixel Shader 3.0
  • Dynamic Flow Control
  • 128-bit FP32 Processing
  • 1024 instruction slots Shaders
  • 512-bit Ring Bus
  • High Dynamic Range rendering
  • 6X Adaptive AA
  • H.264 Accelerated
  • Dual DL-DVI + VIVO
  • CrossFire support
  • DirectX® 9 and OpenGL® supported
  • HIS delivers Faster, Cooler, Quieter plus the best quality product!
  • - iTurbo boosts the card to next level gaming experience achieving 650MHz of core speed (same as X1950XTX)

    • - Faster: iTurbo boosts the card to next level gaming experience achieving 650MHz core speed (same as X1950XTX)
    • - Cooler: IceQ 3 cools down the core temperature dramatically then original cooler.
    • - Quieter: IceQ 3 operates with lower noise than original cooler
  • Platinum packing with software bundle
  • Professional customer service and technical support
  • FlatOut
  • Microsoft Dungeon Siege Full
  • 3D Album PicturePro
  • PowerDirector 3 SE Plus
  • Power2Go 4
  • PowerDVD 6

  • (Bundle items are subject to change without prior notice)
  • VIVO Cable
  • HDTV Output cable
  • DVI to VGA Dongle x 2

Model Name HIS X1950XT IceQ3 Turbo Dual DL-DVI VIVO 256MB GDDR3 PCIe
Chipset Radeon X1950 PCIe Series
ASIC R580+
Pixel Pipelines 16
Vertex Engines
Manu. Process (Micron) 90nm
Fill Rate 31.2GPixel/s
Memory Size (MB) 256
Memory Type GDDR3
RAMDAC (MHz) 400 Dual
Engine CLK (MHz) 650
Memory CLK (MHz) 1800
Memory Interface (bit) 256
Memory Bandwidth 57.6GB/s
Max. Resolution 2560x1600
Bus Interface PCIe
2nd VGA Yes
2nd DVI Yes
TV-out Yes
HDTV (YPrPb component output) Yes
Video-in Yes
TV Tuner No
FM Tuner No


HIS X1950XT IceQ 3 Turbo runs at XTX speed
HIS X1950XT IceQ 3 Turbo supports full HD video (1080p) with HDCP support, featuring new 8 channels ultra high speed GDDR3 memory and Ring Bus memory controller, It's new cache design provides lightning fast memory control for rendering engines.

The HIS X1950XT IceQ 3 Turbo ups the ante with Avivoℿvideo and display technology that delivers movies, games, and photos in high-definition with stunning color and realism.

CrossFireℿReady for Extreme, Accelerated Gaming
HIS CrossFireℿaccelerates all your games, all the time, and delivers the highest image quality modes and resolutions with no special software or patches needed for compatibility.


IceQ cooling technology
The IceQ cooling system draws cool air from inside the case and exhausts warm air outwards. This prevents the fan from recycling warm air to cool the VPU, which increases cooling performance and lower the air temperature inside the case significantly.


How to identify "Turbo" edition?
HIS Turbo edition guarantees a dramatic range of overclockable speed on your card. All IceQ series come with both Turbo and non Turbo (standard) editions. Check for the box containing this label. It identifies this is a "Turbo" edition card and marked with the guaranteed overclocking speed in core and memory.
