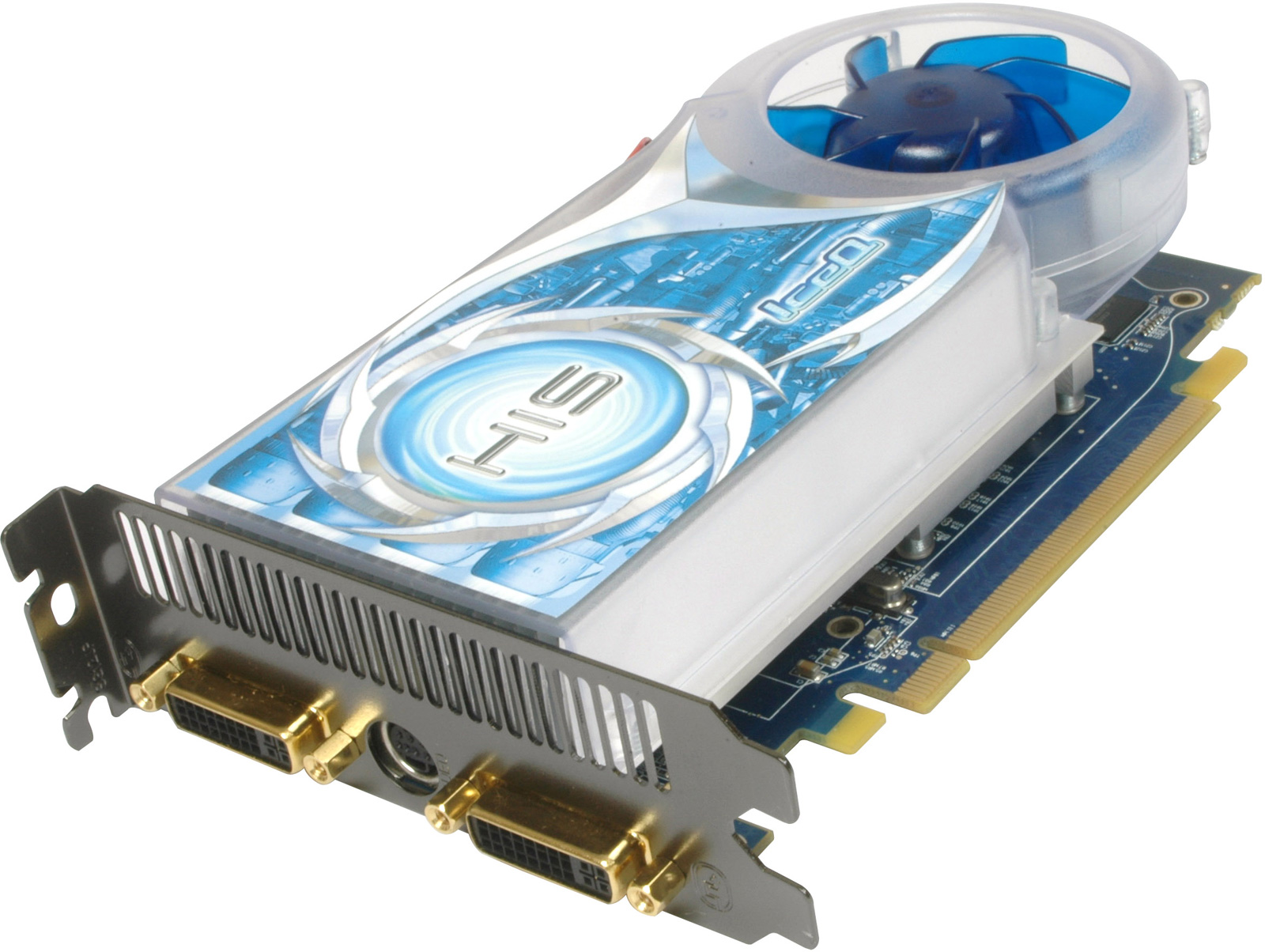

HIS HD 2600PRO IceQ Turbo 512MB/256MB DDR2 PCIe
  • HD2600PRO_IceQT_PCIe_500
  • HD2600PRO_IceQT_3DBox_250
Product Code H260PRQT512DD-R
H260PRQT256DD-R
Cooler IceQ
GPU 2600Pro
Core Clock 650 MHz
Memory Clock 1050 MHz
Memory Size 512 / 256 MB
Memory Type DDR2
Memory Interface 128 bit
Interface PCI-Express x16
Availability Discontinued

  • ATI Premium Graphics™
  • ATI CrossfireX™
  • DirectX 10
  • IceQ
  • UV Sensitive
  • PCI Express 1.0
  • OpenGL 2.0
  • 1080p
  • HDMI
  • HDTV
  • Dual Monitor
  • Unified Video Decoder
  • Gaming
  • Dual DVI
  • TV-Out
  • Retail Pack
  • Powered by Radeon® HD 2600 PRO GPU - 650MHz(Turbo)
  • Superscalar unified shader architecture
  • 120 stream processing units
  • 512MB/256MB 128-bit DDR2 - 1050MHz(Turbo)
  • Comprehensive DirectX® 10 support
  • Built-in HDMI and 5.1 surround audio
  • Dynamic geometry acceleration
  • Game physics processing capability
CHIPSET FEATURES
  • Equipped with the strongest mainstream air-cooling technology - IceQ
  • Factory pre-overclocked Turbo speed
  • Gold-plated ports and black panel plate - HD concept
  • 390 million transistors using 65nm fabrication process
  • Superscalar unified shader architecture
  • 120 stream processing units
  • 128-bit DDR2 memory interface
  • Comprehensive DirectX® 10 support
  • High-speed 128-bit HDR lighting
  • Up to 24x Custom Filter Anti-Aliasing
  • ATI AvivoTM HD Video and Display architecture
  • Built-in HDMI and 5.1 surround sound
  • Support for the ATI RadeonTM DVI to HDMI adapter
  • Unified Video Decoder (UVD) for Blu-rayTM and HD DVD
HIS PRODUCTS ADVANTAGE
  • Equipped with the strongest mainstream air cooling technology – IceQ
  • Factory pre-overclocked Turbo at Brand-new HD concept - Black panel plate and gold-plated output ports to cope with the new “HD” concept of the new Radeon™ HD Series
  • HIS Radeon™ HD 2600 delivers remarkable gaming performance for Windows Vista™ and DirectX® 10
  • HIS Radeon™ HD 2600 features hardware HD video processing and HDMI with built-in 5.1 surround audio ATI Avivo™ HD technology delivers sharp images and vibrant color fidelity from playback of Blu-ray™ and HD DVDs movies
  • HIS Radeon™ HD 2600 delivers powerful graphics performance to enhance the stunning Windows Vista™ user experience
ACCESSORIES
SOFTWARE BUNDLED
  • Half-Life®2:Lost Coast, Half-Life®2: Deathmatch
  • Driver disc
CABLE/ADAPTOR BUNDLED
  • HDTV Cable
  • S-Video Cable
  • DVI to VGA/D-sub Adapters
Model Name
HIS HD 2600 PRO IceQ Turbo 512MB/256MB DDR2 PCIe
Chipset
Radeon HD 2600 PCIe Series
ASIC
Radeon™ HD 2600PRO GPU
Pixel Pipelines
120 stream processing units* (Unified)
Vertex Engines
120 stream processing units* (Unified)
Manu. Process (Micron)
65nm
Transistor
180 million transistors on 65nm fabrication process
Fill Rate
Memory Size (MB)
512 / 256
Memory Type
DDR2
RAMDAC (MHz)
400
Engine CLK (MHz)
650
Memory CLK (MHz)
1050
Memory Interface (bit)
128
Memory Bandwidth
Max. Resolution
2560*1600
Bus Interface
PCI-Express x16
Power Supply Requirement
Connection to 400 Watt (550 for CrossFire™) or greater power supply with two 2x3-pin PCIe® power connectors is required.
VGA
No
2nd VGA
No
DVI
Yes
2nd DVI
Yes
TV-out
No
HDTV (YPrPb component output)
No
Video-in
No
TV Tuner
No
FM Tuner
No

ATI Radeon HD 2600 System Requirements

  • PCI Express® based PC is required with one dual-width X16 lane graphics slot available on the motherboard
  • AMD Athlon® or Intel® Pentium
  • 1GB of system memory
  • Connection to 400 Watt (550 for CrossFire™) or greater power supply with two 2x3-pin PCIe® power connectors is required.
  • Certified power supplies are strongly recommended. Refer to http://ati.amd.com/CertifiedPSU for a list of Certified products
  • Certified system cases with good airflow and cooling are recommended. Refer to http://ati.amd.com/certifiedcases for a list of Certified products
  • Installation software requires CD-ROM drive
  • To complete the CrossFire™ platform, a second ATI Radeon™ HD 2600 graphics card, a CrossFire™ Ready motherboard and one CrossFire™ Bridge Interconnect cable per board are required



The “HD"Concept
Starting from the new Radeon™ HD 2600 Series, HIS has applied the “HD” concept design on its new models. Features include: high-quality gold-plated ports, black panel plate which sync. with the “High-definition” concept of the new Radeon™ HD Series.

The strongest air cooling technology – IceQ
HIS IceQ is endorsed as the most efficient cooling technology among the current mainstream graphic cards' series. HIS IceQ can actively draw the air inside your PC case to cool down the card, and blows amounts of hot air out of your case, dramatically decreasing the GPU temperature together with your PC components. Ultra quiet HIS IceQ fan keeps the noise level below 30dB. HIS IceQ is also UV sensitive, enhancing the gamers’ UV light case.

ATI Avivo™ HD
HIS Radeon™ HD 2600 Series GPUs introduce ATI Avivo™ HD technology with advanced audio, video processing, display and connectivity capabilities for high definition entertainment solutions

Remarkable Gaming Performance for DirectX® 10

Certified for Windows Vista™

January 28th, 2009 at 10:42 pm By Febianda Primatama

This card can play all of new games even it just have DDR2 memory. The temperature never reach 60C, often at 55C at full load. Just has a little different with other card with same chipset that use GDDR3 memory.
Better than nVidia 8500GT.
