HIS R9 280X iPower IceQ X² Turbo Boost Clock 3GB GDDR5 PCI-E DLDVI-I/HDMI/2xMini DP
  • H280XQMT3G2M_Gold_all_1600.jpg
  • H280XQMT3G2M_Gold_1_1600.jpg
  • H280XQMT3G2M_Gold_2_1600.jpg
  • H280XQMT3G2M_Gold_03_1600.jpg
  • H280XQMT3G2M_Gold_4_1600.jpg
  • H280XQMT3G2M_01_1600.jpg
  • H280XQMT3G2M_02_1600.jpg
  • H280XQMT3G2M_04_1600.jpg
  • H280XQMT3G2M_05_1600.jpg
  • H280XQMT3G2M_07_1600.jpg
  • H280XQMT3G2M_3D_BOX_1600.jpg
제품 코드 H280XQMT3G2M
EAN 코드 4895139008777
쿨러 IceQ X²
GPU R9 280X
코어 클럭 Up to 1000 (Boost Clock Up to 1050) MHz
메모리 클럭 Up to 6000 MHz
메모리 크기 3072 MB
메모리 종류 GDDR5
메모리 인터페이스 384 bit
인터페이스 PCI Express x16 (PCI Express 3.0)
카드 크기 29.7 x 14.1 x 4.2 cm
박스 크기 39.5 x 23.8 x 8.2 cm
Availability

  • DirectX 12
  • iPower
  • Windows 8 Compatibility
  • AMD Radeon Graphics
  • AMD HD3D Technology
  • AMD Eyefinity Technology
  • IceQ X²
  • PCI Express 3.0
  • OpenGL 4.3
  • 1080p
  • HDMI
  • HDTV
  • Dual Monitor
  • Shader Model 5
  • Gaming
  • Mini DisplayPort
  • Native HDMI
  • DVI
  • Retail Pack

iPower for More Voltage, More Overclocking

iPower design allows the card to carry more voltage, expanding overclocking capability to a new level!

HIS R9 280X iPower IceQ X² AMD Reference Design
PWM Phase 6+1+1+1=9 5+1+1+1=8
Mosfet DirectFET Original Mos
Power Supply 8+8 Pin 6+8 Pin

IceQ X² – Cooler, Quieter

Cooler
With IceQ X², the card is cooler than the reference cooler.


Quieter
IceQ X² is one of the quietest coolers, making the card quieter than the reference cooler. The card is below 28dB when watching movies, surfing Facebook, working. The card remains quiet whether you are gaming, online socializing, entertaining or working.

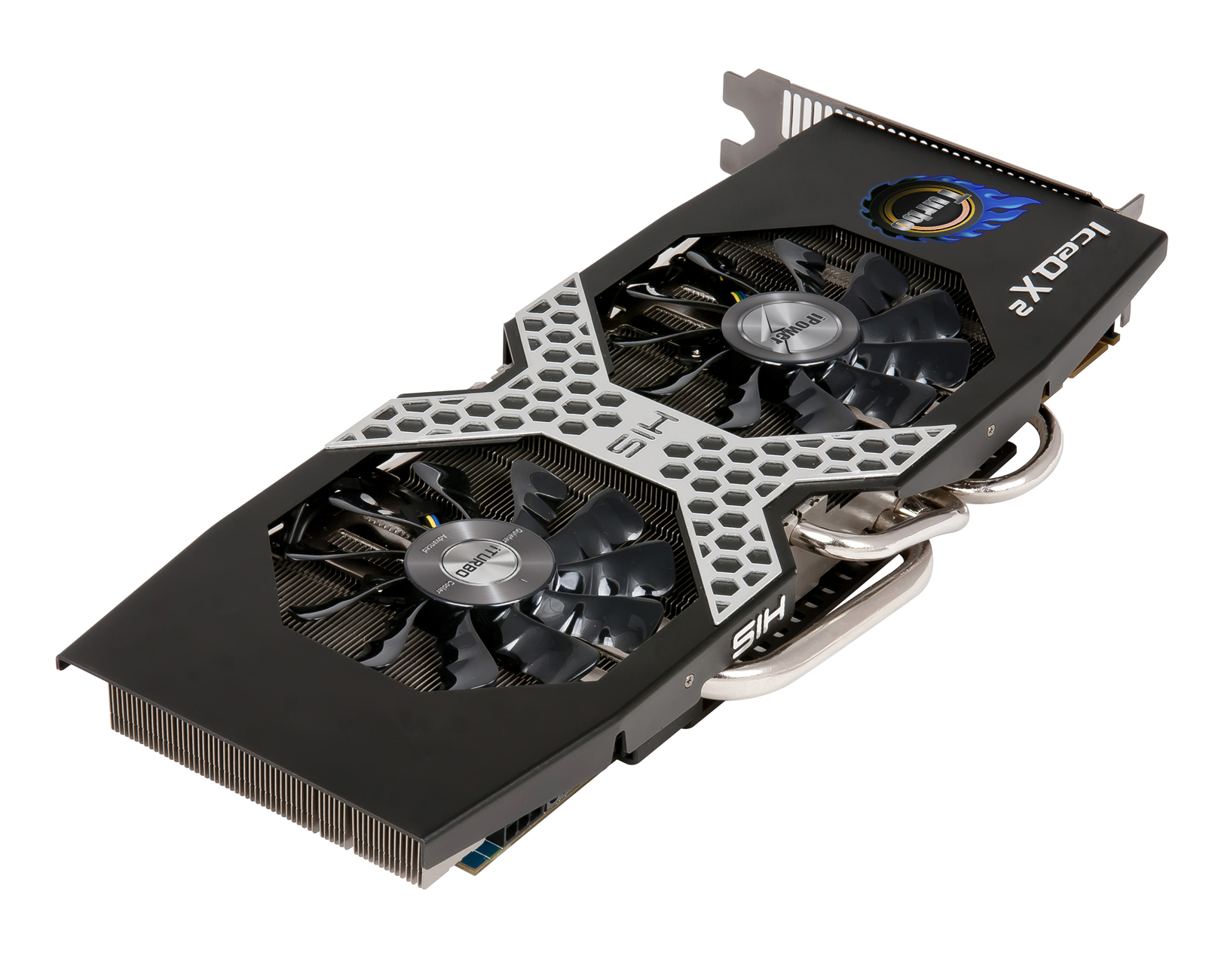

Fan Design

  • The super large 2x 89mm dual axial fans draws massive amount of cool air to cool the GPU directly.
  • The Q&C fan blade increases air velocity make cooling more efficiently while keeping noise level at minimum.
  • The fan is extremely durable with a life span of up to 50,000 hours.
  • The 2x 8mm and 3x 6mm wide heatpipes optimize cooling performance by removing heat from the core area.
  • The extra large 40x47.5mm copper heatsink provides a large area to dissipate heat efficiently.
  • The card also carries memory and mosfet heat sinks to provide extra heat dissipation from these areas.
  • The card also features fan control and monitoring, you are able to read fan speed & Asic temperature from iTurbo or other softwares.

New Technology, New Experiences

GCN
With AMD 2nd generation GCN technology, the card optimizes DirectX® 12 gaming performance automatically up to 2.5 times faster! It also offers up to 4.5x compute performance and up to 95% lower GPU Idle Power Consumption!

Apps Faster & Smoother!
The card enables a “quality graphics” experience on everyday applications, giving huge performance boosts on image processing, file compression, media converter apps, and a lot more!

• Adobe Photoshop CS6
• Corel Winzip 16.5
• Musemage
• Handbrake
• MotionDSP Vreveal
• GIMP
• Cyberlink Power Director
• ArcSoft Media Converter

PCI-e 3.0 Support
Armed with the latest PCI-e 3.0 bus design maximizes performance by delivering double bandwidth per lane of PCI-e 2.x. Paired the card with the latest platforms and get the ultimate performance!

More Graphics, Less Power!
The new architecture of the card gets more usable processing power for your money, enabling better frame rates in the latest games at high resolutions. In addition, with AMD ZeroCore Power & AMD PowerTune technologies, you can optimize the balance between performance and power consumption of your system by adjusting the engine clock during runtime of the card. Manage the power and keep your wallet loaded!

See More, Enjoy More!
The card supports 30” LCD monitor and any large size TV up to 80" feature with 16:9 ratio in amazing 4096 by 2160 resolution. Up-scaling your computer into a multimedia center with the biggest display!

Enjoy HD Beauty
With Full HD 1080p support, the card delivers high quality 1920X1080 graphics, enabling seamless full-screen video playback. See HD, hear HD and feel HD - Enjoy the beautiful graphics now with the card!

Enjoy Copy Protected Movies
The card is HDCP complaint, enabling users to play copy-protected content, such as commercial DVD movies.

Enjoy True to Life Graphics
ULTRA HD videos have resolution four times that of current HD videos, meaning images too clear that may deceive your eyes! With the card, you are set for getting the movie theater experience to your home. You may be able to watch a video shooting the Eiffel tower and zoom it in to see your friend’s face clearly from the top! Get your eyes impressed and enjoy mind-blowing graphics with extreme clarity, depth and texture!

See More, Win More!
The card is capable to turn your computer into a super gaming machine. Enjoy the latest 3D games with stunning graphics and effects that your enemies cannot match! Get an immersive experience with AMD Eyefinity!
Expand your game across up to 4 displays while your opponents have one monitor. Along with all-new support for stereo 3D, universal bezel compensation and brand new display configurations, take the unfair advantage over your opponent and win more with the surround sight

View More, Work Better
Having one dedicated screen just for twitter or Facebook and a second for outlook is not a dream anymore. The card features 2 Mini-display Ports for enhanced workspace flexibility. You can easily connect to two displays, including the 27” Apple LED Cinema Displays with the two Mini DisplayPorts. The dual-link DVI port allows you connect to a 30” DVI display up to 2560x1600. Resolution can even reach 4096x2160 with HDMI® , good for TV up to 80"!

Hear Better in Video Conference
Most GPUs today support only one audio stream at a time. The card, however, has Discrete Digital Multi-Point Audio that can simultaneously output multiple, independent audio streams. Audio seamlessly follows the video, providing affordable multi-display, multi-audio conferencing for consumers!

HIS PRODUCTS ADVANTAGE
  • HIS delivers Faster, Cooler, Quieter plus the best quality product!
  • Professional customer service and technical support

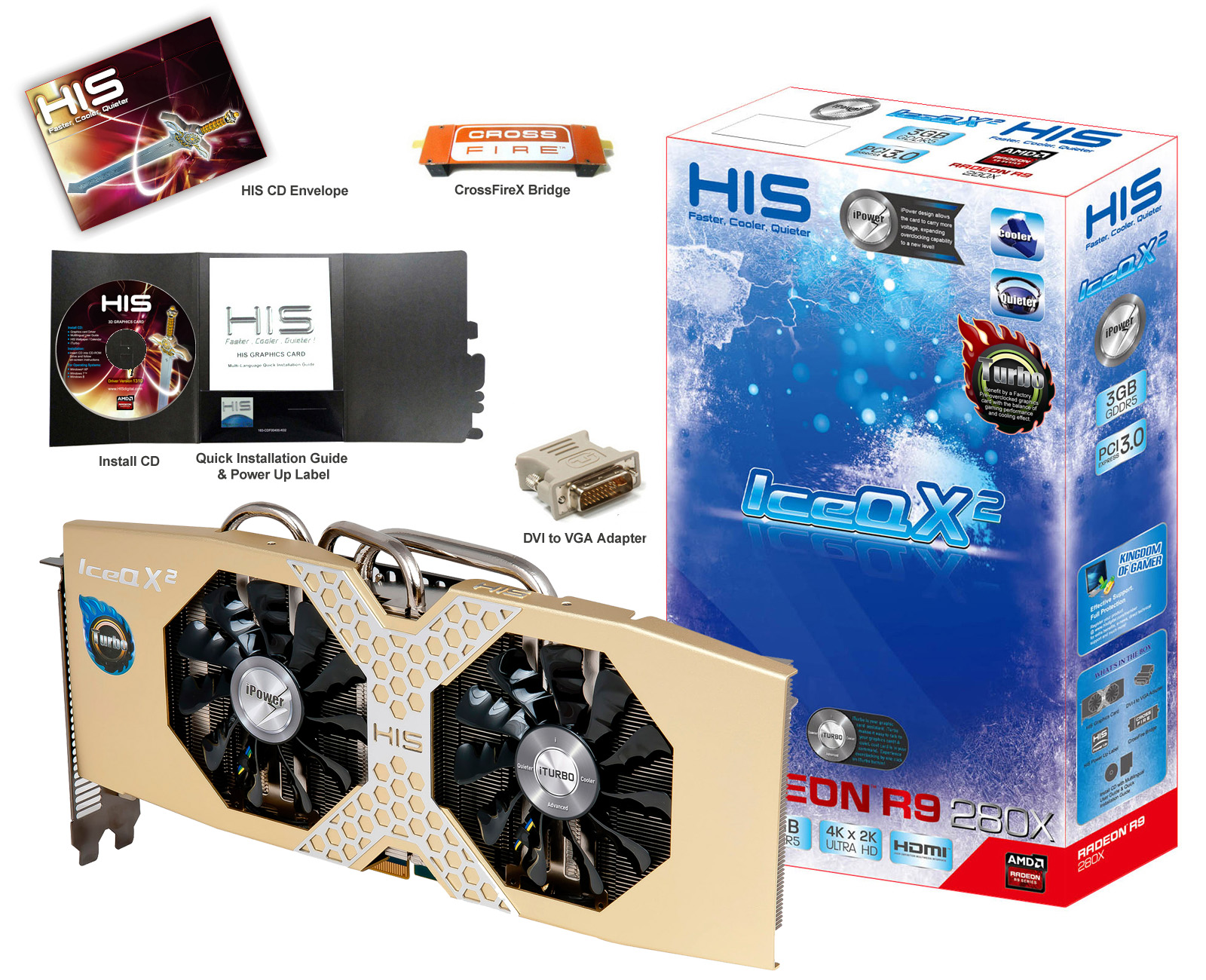

What's in the box
  • HIS Graphics Card
  • CrossFireXTM Bridge
  • DVI-I to VGA Adapter
  • Install CD with Multilingual User Guide
  • Quick Installation Guide
  • HIS Power Up Label



Model Name
HIS R9 280X iPower IceQ X² Turbo Boost Clock 3GB GDDR5 PCI-E DLDVI-I/HDMI/2xMini DP
Chipset AMD Radeon R9 280X
Memory Size
3072 MB
Memory Type GDDR5
Core Clock
1000 MHz (Boost Clock 1050 MHz)
Memory Clock
6000 Gbps
Memory Interface
384 bit
Power Supply
Requirement
750Watt (or greater) power supply with two 150W 8-pin PCIe power connectors recommended
1000Watt (or greater) power supply with four 150W 8-pin PCIe power connectors
Max. Resolution
(per Display)
DisplayPort 1.2 - 4096x2160
HDMI - 4096x2160
Dual-link DVI with HDCP - 2560x1600
Interface PCI Express 3.0 x16
Outputs DLDVI-I + HDMI + 2xMini DP

System Requirements

  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard
  • 750W (or greater) power supply with two 150W 8-pin PCI Express power connectors recommended
    1000W (or greater) power supply with four 150W 8-pin PCI Express power connectors recommended for AMD CrossFire™ technology in dual mode.
  • The operation of AMD CrossFire™ technology in dual mode requires a second AMD Radeon™ R9 280X graphics card and an AMD CrossFire™ Ready motherboard.
  • Minimum 4GB of system memory
    8GB (or more) system memory recommended for AMD CrossFire™ technology
  • Installation software requires CD-ROM drive
  • DVD playback requires DVD drive
  • Blu-ray™ playback requires Blu-ray drive
  • Windows® 7, Windows 8 or Windows 8.1 operating system. 64-bit operating system highly recommended.
