HIS HD 4890 Fan TURBO 900MHz(vs. 850 standard) 1GB (256bit) 4Gbps(vs. 3.9Gbps standard) GDDR5 PCIe
  • HD4890_Turbo_All_1600.jpg
  • rv790-sd-1600-5.jpg

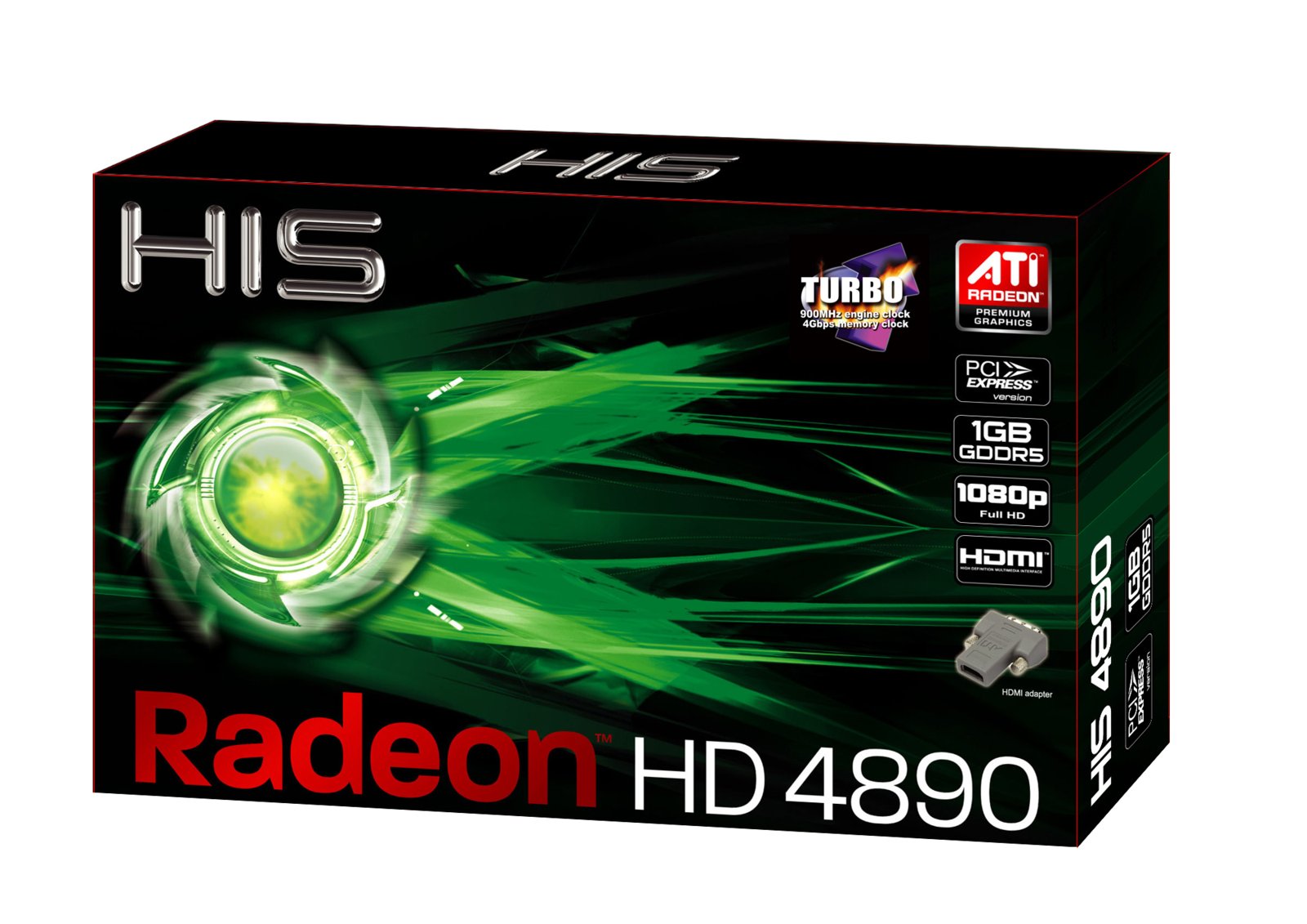

  • HD_4890_3D_BOX_turbo_1600.jpg
产品编号 H489FT1GP
EAN 编码 4895139001730
散热器 Double-Slot Cooler
GPU 4890
芯片时脉 900 MHz
记忆体 时脉 4Gbps / MHz
记忆体 1024 MB
记忆体类别 GDDR5
记忆体介面 256 bit
介面 PCI Express x16 (PCI Express 2.0)
显卡大小 12.5 x 24.6 X 4 cm
包装盒大小 34.5 x 21.5 x 5.5 cm
Availability Available

  • Windows 7 Compatibility
  • ATI Premium Graphics™
  • ATI Stream Technology™
  • ATI CrossfireX™
  • DirectX 10.1
  • PCI Express 2.0
  • 1080p
  • HDMI
  • HDTV
  • Dual Monitor
  • Unified Video Decoder 2
  • Gaming
  • Dual DVI
  • TV-Out
  • Retail Pack
Introducing the best and fastest platform for DirectX 10.1 Gaming!

3D Gameman Video Review

Overclocking Performance - Great Value to End user

Benchmark provided by AMD


" Stunning Overclocking performance - Benchmark by Tweakup.dk "

Best Performance in 3DMark06 amongst the single GPU market!


"  As you can see the GTX 260 gets owned by the HIS 4890 in each of our tests Benchmark from Techware Labs "

" 4890 is a better choice than the GTX 260 for its lower power consumption vs performance and overall greater performance per dollar spent - Benchmark from Techware Labs "


" Benchmark provided by Tweaktown"


" Benchmark provided by Benchmark.pl"

Best performance in Gaming amongst single GPU market


" Benchmark provided by Benchmark.pl"


" Benchmark provided by Fudzilla "

" Benchmark provided by Fudzilla "

ATI RadeonTM HD 4800 Series Key Features
  • 1 GB of GDDR5 memory
  • DirectX® 10.1 support
  • 800 stream processing units
  • 24x custom filter anti-aliasing (CFAA) and high performance anisotropic filtering
  • Quad mode ATI CrossFireXTM multi-GPU support for highly scalable performance
  • PCI Express® 2.0 support
  • Dynamic geometry acceleration
  • Game physics processing capability
  • ATI AvivoTM HD video and display technology
  • Unified Video Decoder 2 (UVD 2) for Blu-rayTM and HD Video
  • Accelerated Video Transcoding (AVT)
  • DVD Upscaling
  • Dynamic Contrast
  • Built-in HDMI with 7.1 surround sound support
    • The HIS DVI to HDMI Adapter for ATI 4000/ 3000 series (Product Code: HHDMI4071) is required to fully utilize the audio through HDMI features
  • Dynamic power management with ATI PowerPlayTM technology
  • ATI Stream technology

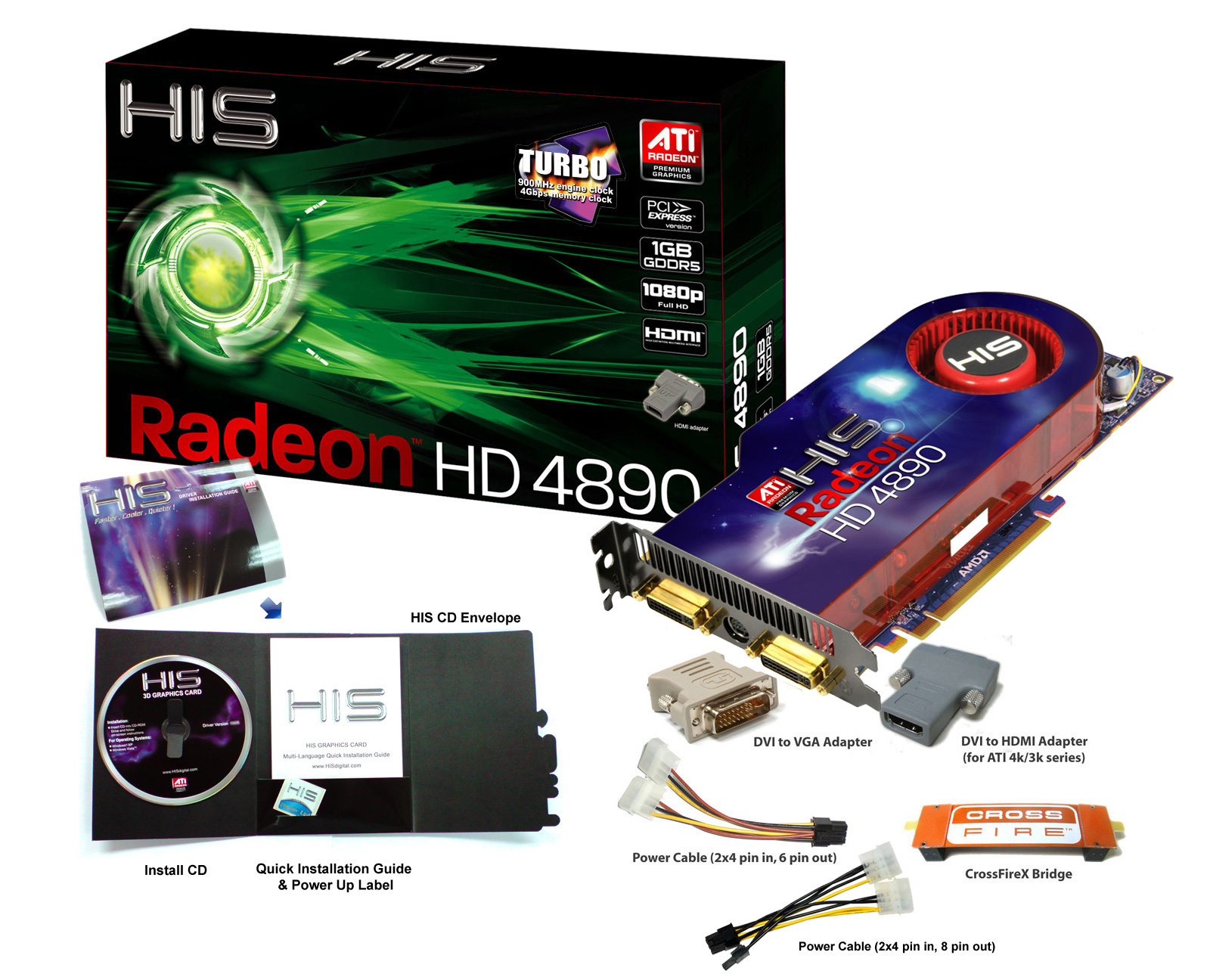

ACCESSORIES
SOFTWARE BUNDLED
  • Driver CD

CABLE/ADAPTOR BUNDLED
  • ATI CrossFireXTM Bridge Interconnect
  • DVI to HDMI adapter
  • DVI to VGA adapter
  • Power Cable 2x 4pin in,  8 pin out
  • Power Cable 2x 4pin in,  6 pin out
  • Power Up Label

Model Name HIS HD 4890 Fan TURBO 900MHz(vs. 850 standard) (Full HD 1080p) HDMI 1GB (256bit) 4Gbps(vs. 3.9Gbps standard) GDDR5 Dual DL-DVI & TV (HDCP) PCIe (RoHS)
Chipset Radeon HD 4800 PCIe Series
ASIC RadeonTM HD 4890 GPU
Pixel Pipelines 800 stream processing units* (Unified)
Vertex Engines 800 stream processing units* (Unified)
Manu. Process (Micron) 55nm
Transistor 956 million
Memory Size (MB) 1024
Memory Type GDDR5
RAMDAC (MHz) 400
Engine CLK (MHz) 900
Memory CLK (Gbps) 4Gbps (1000 x 4)
Memory Interface (bit) 256
Power Supply Requirement 500 Watt or greater power supply with two 75W 6-pin PCI Express® power connectors recommended (600 Watt and four 6-pin connectors for ATI CrossFireX™ technology in dual mode)
Max. Resolution Two x 2560*1600 (Dual dual-link)
Bus Interface PCI Express x16
VGA No
2nd VGA No
DVI Yes
2nd DVI Yes
TV-out Yes
HDTV (YPrPb component output) No
Video-in No
TV Tuner No
FM Tuner No

ATI Radeon™ HD 4890 System Requirements
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard
  • 500 Watt or greater power supply with two 75W 6-pin PCI Express® power connectors recommended (600 Watt and four 6-pin connectors for ATI CrossFireX™ technology in dual mode)
  • Certified power supplies are recommended. Refer to for a list of Certified products
  • Minimum 1GB of system memory
  • Installation software requires CD-ROM drive
  • DVD playback requires DVD drive
  • Blu-ray™ playback requires Blu-ray drive
  • For a complete ATI CrossFireX™ system, a second ATI Radeon™ HD 4890 graphics card, an ATI CrossFireX Ready motherboard and one ATI CrossFireX Bridge Interconnect cable per graphics card are required





Redefine HD Gaming

The ATI Radeon HD 4800 Series GPUs deliver a cinematic gaming experience with unprecedented performance. The powerful new TeraScale graphics will propel you deep into your gameplay with seamless frame rates and high resolutions. Enhanced anti-aliasing (AA) and anisotropic filtering create striking graphics with unparalleled realism so you can max out the settings of the most demanding next-generation games or revitalize your favorite titles. Play today while preparing for tomorrow with tessellation, support for DirectX® 10.1 and scalable ATI CrossFireXTM technology.

ATI AvivoTM HD Technology

ATI AvivoTM HD is the advanced image and video processing and display technology found in ATI RadeonTM HD GPUs and ATI TheaterTM video capture processors. Specifically designed for HDTV and HD video enthusiasts, ATI Avivo HD provides brilliant colors, sharp images, smooth playback of Blu-rayTM* and HD video content, HDMI with built-in multi-channel digital audio, and on some GPUs, Unified Video Decoding (UVD). UVD is designed to enable a cool and quiet media PC with low CPU power requirements and playback of HD 1080p content. HD Monitor is required for full 1080p enjoyment.

HDMI Video and Audio

A system with an ATI RadeonTM HD 4800 Series graphics card can help enhance the HD entertainment experience by providing a seamless connection to an HDTV or home theater system. With built-in 7.1 surround sound audio (AC3 / DTS ), the new GPUs and graphics cards support single cable connection directly to a compatible HDTV, projector or receiver. This single cable carries both the HD video and 8 channel audio for a clean, high definition connection. Some graphics cards will be equipped with an HDMI connector, while others will output the HDMI signal using a special ATI Radeon DVI-I to HDMI adapter. These options give consumers more options and flexibility when connecting their PCs to monitors or home theaters for maximum enjoyment of HD content. The new GPU also supports xvYCC color which can display a wider range of color when connected to capable HDTVs.

* The HIS DVI to HDMI Adapter for ATI 4000/ 3000 series (Product Code: HHDMI4071) is required to fully utilize the audio through HDMI features

Microsoft® DirectX® 10.1 support

ATI RadeonTM HD 4800 series GPUs offer full support for the new DirectX® 10 and DirectX® 10.1 API (Application Program Interface) from Microsoft; ready to meet the demanding needs of new, next generation games. DirectX 10 is the first totally new DirectX in the last 4 years and brings important graphics innovations that can be used by game developers for the next generation of games. DirectX 10 introduces crisp, never-beforeseen detail-rich images, visual effects and game dynamics capable of accurately simulating the real world. No matter which ATI RadeonTM HD 4800 Series GPU you choose, you can be assured that games will look as good as the developer intended!

ATI CrossFireXTM Technology

ATI CrossFireXTM multi-GPU technology takes your gaming experience to the next level with superb scalability, performance and compatibility. The technology combines the awe-inspiring capabilities of multiple ATI RadeonTM graphics cards and an ATI CrossFireX ready motherboard to meet the hard-core demands of your alternate reality. New ATI RadeonTM HD graphics cards are designed with an internal ATI CrossFireTM Bridge Interconnect system to simplify installation.

Microsoft® Windows Vista®

ATI RadeonTM HD 4800 series graphics cards provide support for the Microsoft® Windows Vista® operating system and take advantage of the Windows AeroTM graphical interface. You will be amazed by the dazzling 3D visual effects and have peace of mind that the ATI CatalystTM software and drivers are designed and thoroughly tested to ensure full compatibility and stability to help keep you up and running. All these new technologies and features make the ATI Radeon HD 4800 series of GPUs the ideal solution for ultimate HD gaming and HD video entertainment with the Windows Vista OS



September 3th, 2010 at 04:42 pm By Intro Ide Gumilang

Very very very nice card. I have 2 unit of this card, but I not crossfire it. Would HIS like to build this card in AGP Edition?

October 1th, 2009 at 04:03 pm By mostafajoon

very very nice ...
I LOVE U .... HIS

September 1th, 2009 at 07:51 pm By NineIT

super graphic card !!!!!!

I Love HIS

May 6th, 2009 at 06:56 pm By adnan darmawan

it's wonderful graphic card, i must have one

Post your comment

HIS欢迎用户随时发表意见,但为了防止出现垃圾讯息及不相关之内容,HIS编辑会先审查用户的评论!
我们强烈建议用户使用真实姓名,亦请提供电邮地址,以便日后HIS需要与用户跟进情况。用户的资料会予以保密。

Name (*)
EMail (*)
Comment (*)

HIS has won over 1000 awards with ATI graphic solution from major media worldwide.

" The relatively new game Battleforge, the Radeon HD 4890 which is slightly ahead Geforce GTX 275th " - Reviewed by Mikrodatorn

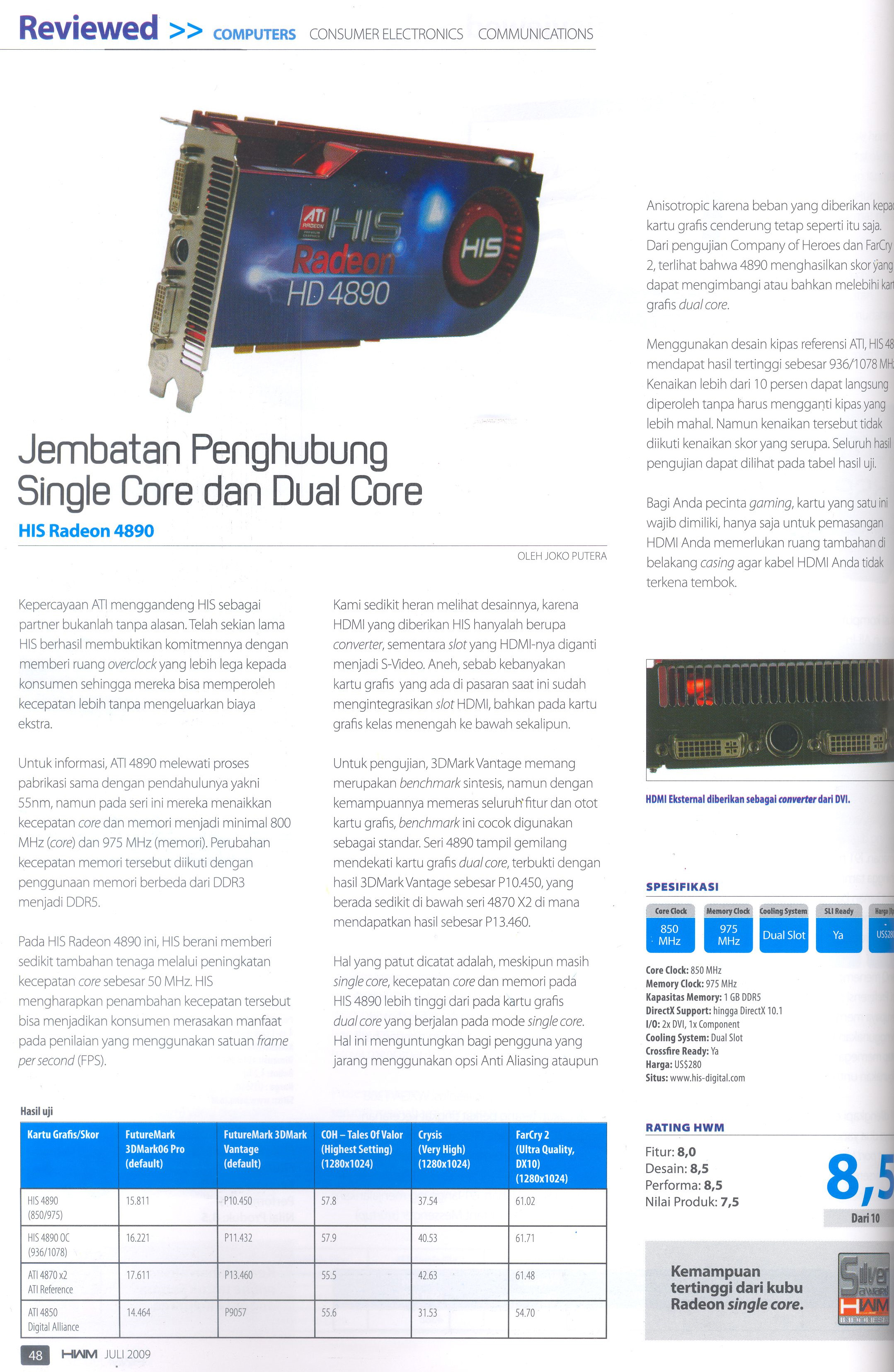

HIS 4890 Turbo scores 8.5 points out of 10 and earned the HWM Silver Award

"  Here without any doubt, Hawx is heavily loaded with ATI cards and HIS 4890 Turbo perform even better than Nvidia GTX 285. " - Centrale3d Approval Award

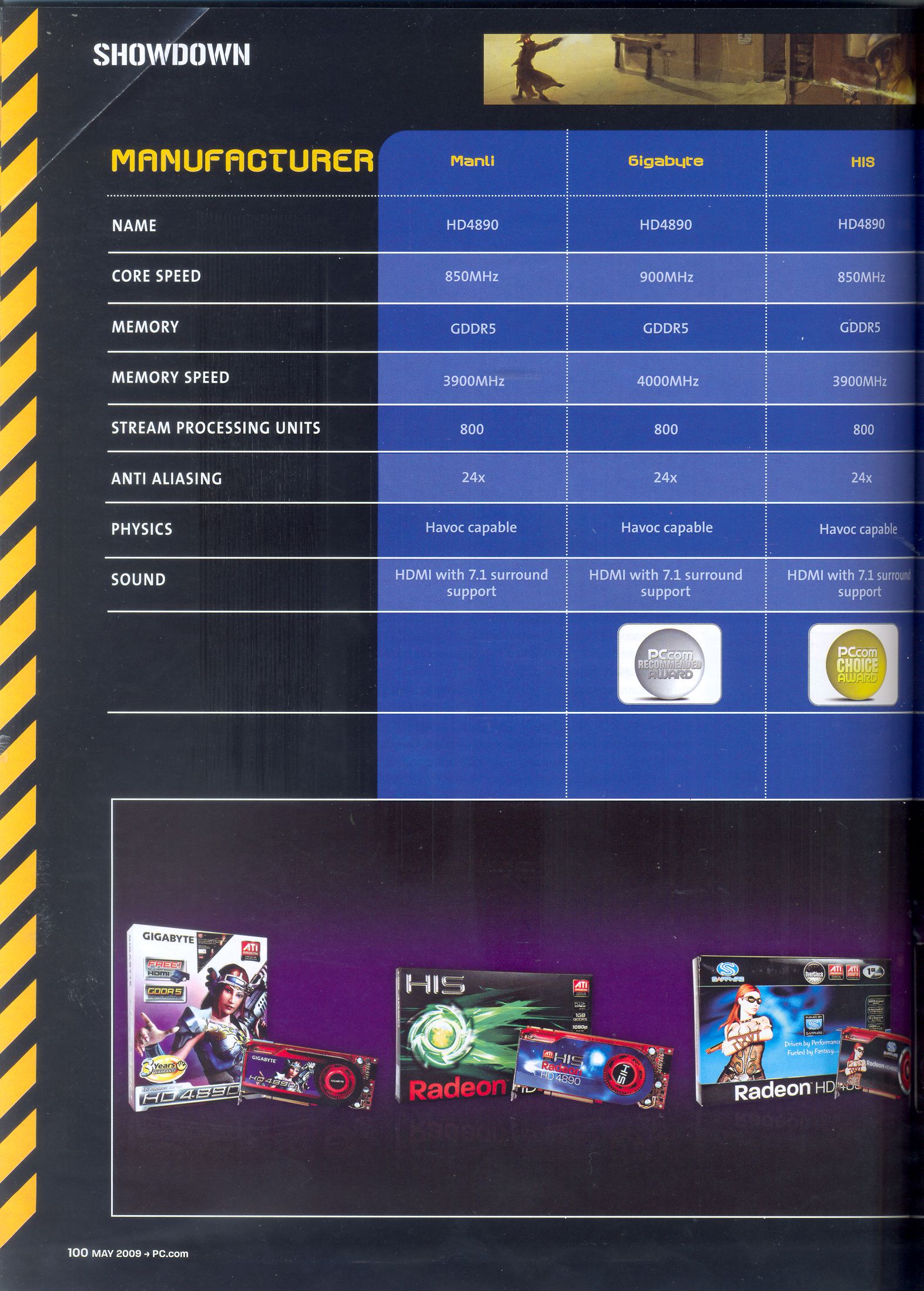

" The turbo offering from HIS offers a nice little boost in performance with the best gains being seen at resolutions of up to 1920x1200......It's one of the higher overclocked cards with some companies not quite reaching 900Mhz. " - PC.com's Editor Choice Award

" HIS has a rock-solid Radeon HD 4890 delivered. The card is very fast and can handle all current games in the highest resolutions without any problems. " - 3D Fusion Silver Award

HardwareLuxx Review

Hot Hardware Recommended

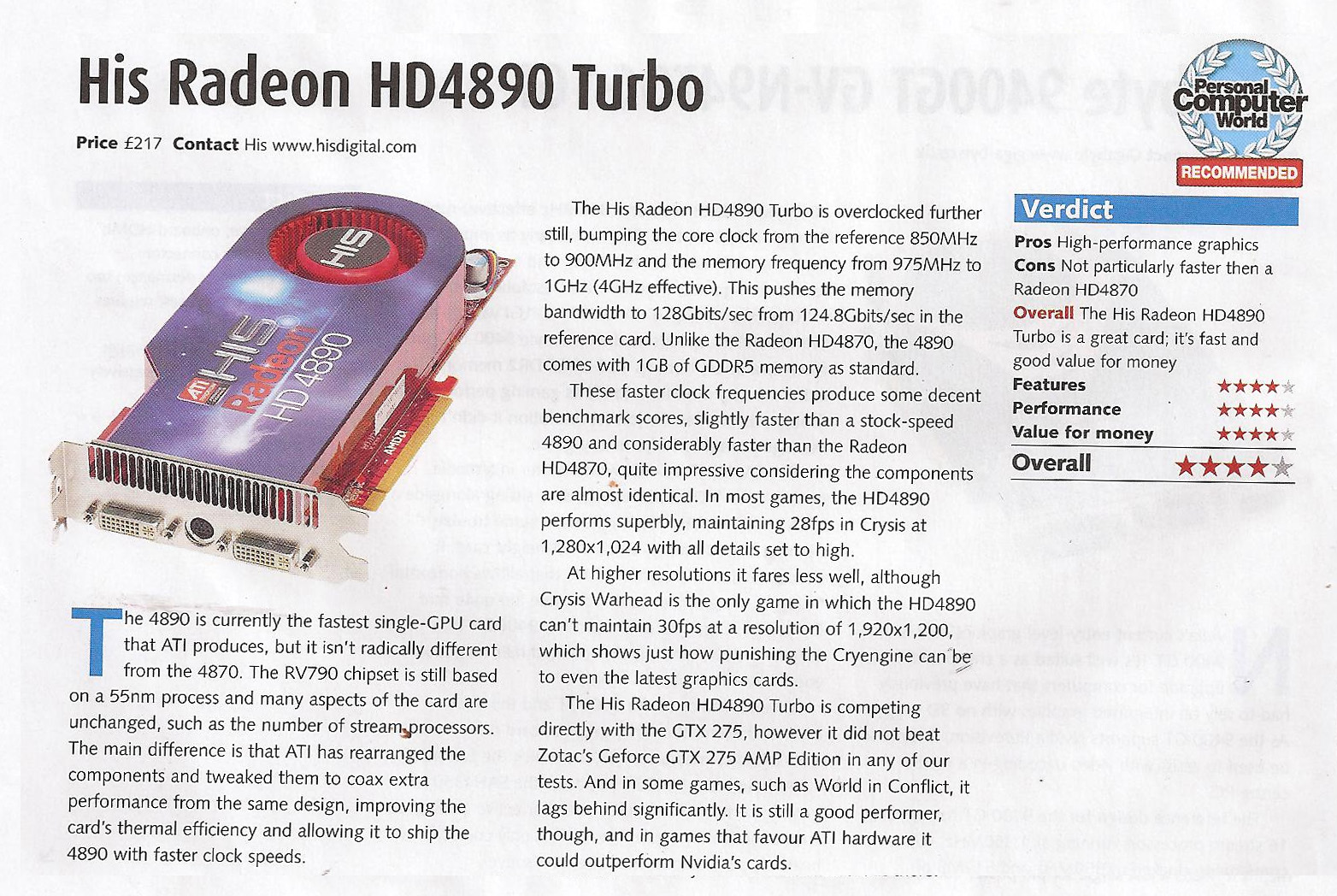

" In most games, the HD4890 performs superbly, maintaining 28fps in Crysis at 1280x1024 with all details set to high. " - Personal Computer World Recommended Award

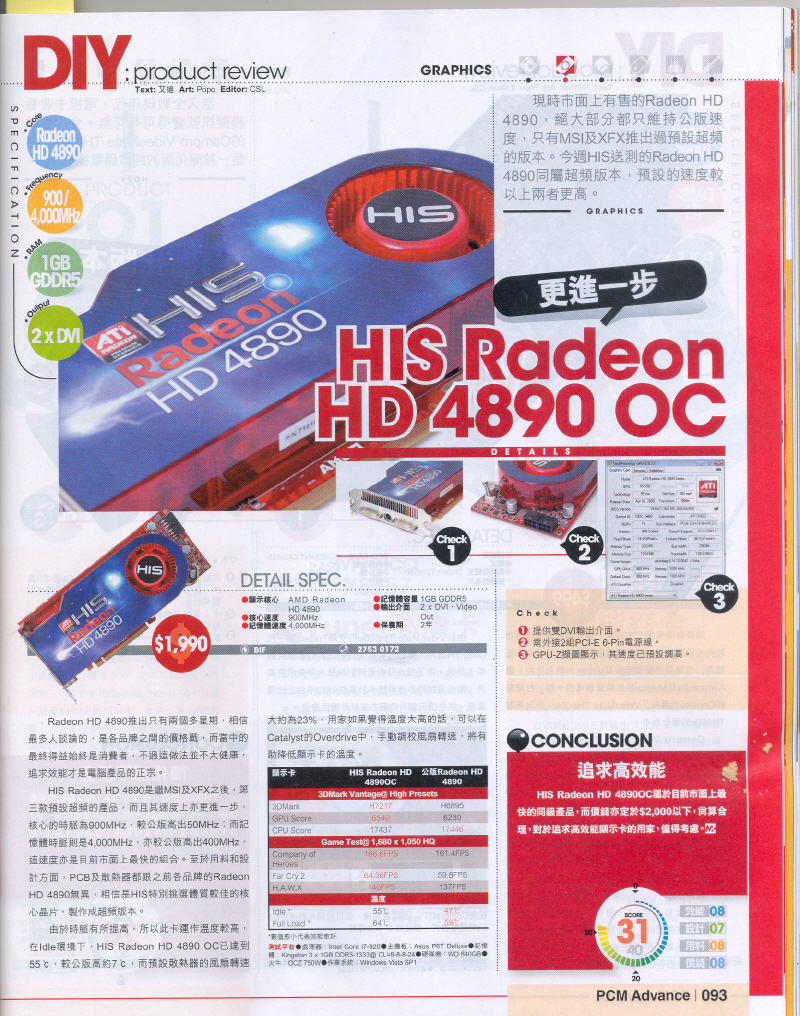

" HIS Radeon HD 4890 的速度是目前市面上最快的組合,速度較MSI及XFX推出的超頻版本更高 " - PCM Review

" We think that a high-end graphics card should be able to render any game at 8x AA after 1920x1200. And as such, the Radeon HD 4890 definitely qualifies...... It's very tweakable and can be clocked a vast amount higher. If you clock it at 950 MHz on the core and 4400~4600 Mhz on the memory, the card will surpass GeForce GTX 285 performance. " - Guru3D Recommended

" As you can see the GTX 260 gets owned by the 4890 in each of our tests. As for the cost vs performance. ......The HIS Radeon Has a Compute Power of 1.36 TFLOPs...... The GTX 260 Has a Compute Power of 715 GFLOPs...... When put into perspective we can see why the 4890 is a better choice than the GTX 260 for its lower power consumption vs performance and overall greater performance per dollar spent " -  Techware Labs Awesome Award

4890 Turbo Video Review - 3Dgameman 100% Kickass Award

" Compared to the NVIDIA offering we see the HD 4890s have a massive jump......Straight off the bat we can see a nice little performance increase with the HIS HD 4890 Turbo. We can actually see at the Extreme preset it manages to beat out the GTX 260 which is something the stock model couldn't achieve. " - TweakTown's "Must Have" Editor's Choice

" HD 4890 is faster than the GTX 260 Core216 by 10-20% in average and it seems like ATI has hit a jackpot. HIS' card outran its non-overclocked sibling by 1-4% in average. (Overclocking) Close to 1000MHz should be possible but you can definitely expect 900+. If you are ATI man and you want the fastest single card, this is an answer to your prayers. " - Review by Fudzilla

" It's obvious that ATI have not just relaunched an overclocked version of a previously released chip in a new packing, but have worked on both optimization and making the chip more effective...... HD4890 card banks almost 2000 points more out of the test than the HD4870 and a good 1500 points more than GTX260" - Scores 9.5 out of 10 in Tweakup's Review
