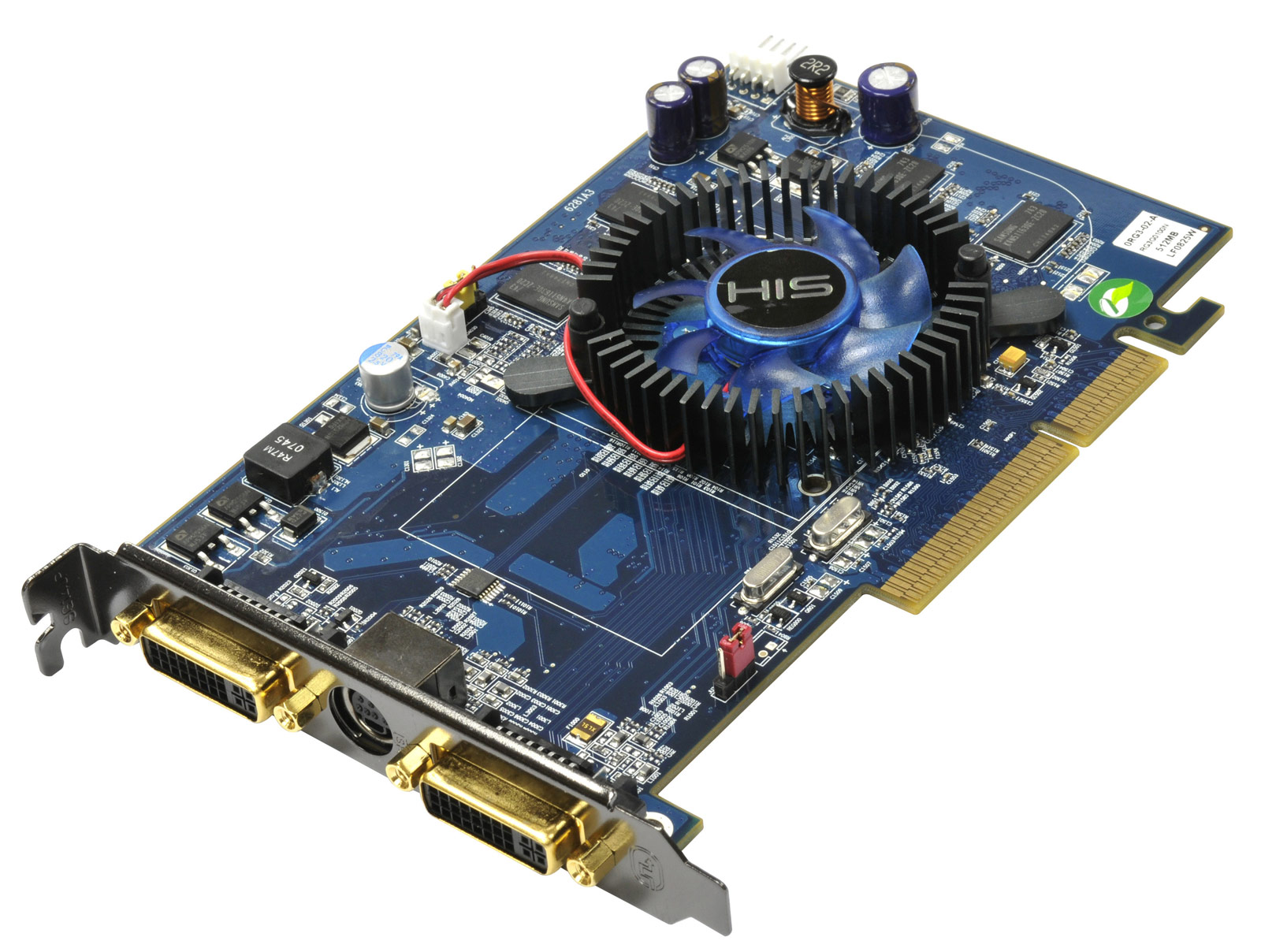

HIS HD 3650 iCooler II 512MB (128bit) DDR2 AGP
  • HD3650_iCoolerII_AGP_1600
  • 3650_AGP_box_250
产品编号 H365F512ANP
EAN 编码 4895139000771
散热器 iCooler II
GPU 3650
芯片时脉 725 MHz
记忆体 时脉 800 MHz
记忆体 512 MB
记忆体类别 DDR2
记忆体介面 128 bit
介面 AGP 8X/ 4X
显卡大小 18.3 X 12.7 X 2.2 cm
包装盒大小 23.2 x 16.2 x 6 cm
产品重量(连包装盒) 0.41 kg
Availability Available

  • ATI Premium Graphics™
  • DirectX 10
  • 1080p
  • HDMI
  • HDTV
  • Dual Monitor
  • Dual DVI
  • TV-Out
  • Retail Pack
  • Powered by Radeon® HD 3600 GPU
  • HIS iCooler II Cooling Technology
  • Quiet: Less than 24dB
  • 512MB (128bit) DDR2 memory
  • Superscalar unified shader architecture
  • 120 stream processing units
  • 128-bit memory interface
  • DirectX® 10.1 / Shader Model 4.1 support
  • AGP support
CHIPSET FEATURES
  • Superscalar unified shader architecture
  • 120 stream processing units
  • 128-bit memory interface
  • DirectX® 10.1 / Shader Model 4.1 support
  • Use up to four GPUs with an AMD 790FX based motherboard
  • High-speed 128-bit HDR (High Dynamic Range) rendering
  • Up to 24x Custom Filter Anti-Aliasing
  • 55nm process technology
  • ATI AvivoTM HD video and display technology
  • Built-in HDMI and 5.1 surround audio
  • The HIS DVI to HDMI Adapter for ATI 4000/ 3000 series (Product Code: HHDMI4071) is required to fully utilize the audio through HDMI features
  • Support for the ATI RadeonTM DVI to HDMI adapter
  • Unified Video Decoder (UVD) for Blu-rayTM and HD DVD
  • Dynamic geometry acceleration
  • Game physics processing capability
HIS PRODUCTS ADVANTAGE
  • HIS delivers Faster, Cooler, Quieter plus the best quality product!
  • Professional customer service and technical support
ACCESSORIES
SOFTWARE BUNDLED
  • Driver CD

CABLE/ADAPTOR BUNDLED
  • DVI to VGA adapter
  • DVI to HDMI adapter
Model Name
HIS HD 3650 iCooler II (Full HD 1080p) HDMI 512MB (128bit) DDR2 Dual DL-DVI & TV (HDCP) AGP (RoHS)
Chipset
Radeon HD 3600 AGP Series
ASIC
Radeon™ HD 3650 GPU
Pixel Pipelines
120 stream processing units* (Unified)
Vertex Engines
120 stream processing units* (Unified)
Manu. Process (Micron)
55nm
Transistor
Fill Rate
Memory Size (MB)
512MB
Memory Type
DDR2
RAMDAC (MHz)
400
Engine CLK (MHz)
725MHz
Memory CLK (MHz)
800MHz
Memory Interface (bit)
128bit
Memory Bandwidth
Max. Resolution
Two x 2560*1600 (Dual dual-link)
Bus Interface
AGP 8X/ 4X
VGA
No
2nd VGA
No
DVI
Yes
2nd DVI
Yes
TV-out
Yes
HDTV (YPrPb component output)
No
Video-in
No
TV Tuner
No
FM Tuner
No

HIS iCooler II Cooling Technology

iCooler II technology: Fast: Reduces heat faster than original coolers; Quiet: Less than 24dB; Cool: cool down the temperature significantly; Durability, iCooler extends the card life

HD Concept output with gold plated

HIS has applied the “HD” concept design on its new models. Features include: high-quality gold-plated ports, black panel plate which sync. with the “High-definition” concept of the new Radeon™ HD Series.

HD Gaming in the Next Generation

Experience the next generation of gaming with incredible performance, life-like graphics and support for the latest Microsoft® DirectX® 10.1. With 120 stream processors, you’re ready for demanding titles that need more throughput.

ATI Avivo™ HD Technology

ATI Radeon™ HD 3600 Series GPUs feature ATI Avivo™ HD technology with advanced audio, video processing, display and connectivity capabilities for high definition entertainment solutions. ATI Avivo™ HD technology includes fully integrated HD audio capabilities and supports playback of multi-channel (5.1) audio streams. When combined with the integrated HDCP copy protection, ATI Avivo HD enables a one-cable HDMI™ connectivity solution to high definition home theaters.

ATI Unified Video Decoder Technology (UVD)

Connect your PC to your home theater and start watching HD content from your computer using new ATI Radeon™ HD 3600 series graphics cards. The ATI Radeon™ HD 3600 Series is designed to decode and playback Blu-ray™ and HD DVD formats using dedicated hardware within the GPU. This technology, known as UVD or Unified Video Decoding, is part of ATI Avivo™ HD, the new collection of technologies that are designed to improve the visual and connectivity capabilities of ATI Radeon™ HD 3600 Series GPUs

HDMI Video and Audio

The ATI Radeon™ HD 3600 Series GPU further enhances the HD entertainment experience by making it easy to make the connection to a big- screen or home theater system. With built-in 5.1 surround audio (AC3) pass-through capabilities, the new GPUs and graphics cards support a single HDMI connection direct to a compatible TV or receiver. This single cable carries both the HD video and 5.1 surround audio for a clean, high definition connection. Some graphics cards will have an HDMI connector built in, while others will use a special ATI Radeon DVI-I to HDMI adapter. These options mean greater choice and flexibility for consumers when connecting to PC monitors or home theaters for maximum enjoyment of full HD 1080p content.

* The HIS DVI to HDMI Adapter for ATI 4000/ 3000 series (Product Code: HHDMI4071) is required to fully utilize the audio through HDMI features

Microsoft® DirectX® 10.1 support

ATI Radeon™ HD 3600 series GPUs offer full support for the new DirectX® 10 and DirectX 10.1 API (Application Program Interface) from Microsoft®; ready to meet the demanding needs of new, next generation games. DirectX® 10 is the first totally new DirectX® in the last 4 years and brings important graphics innovations that can be used by game developers for the next generation of games. DirectX® 10 introduces crisp, never-before-seen detail-rich images, visual effects and game dynamics capable of accurately simulating the real world. No matter which ATI Radeon™ HD 3600 Series GPU you choose, you can be assured that games will look as good as the developer intended!

Microsoft® Windows Vista®

ATI Radeon™ HD 3600 series GPUs provide total support for the Microsoft® Windows Vista® operating system and improve the performance of the Windows Aero™ graphical interface. You will be amazed by the dazzling 3D visual effects and have peace of mind that the ATI Catalyst™ software and drivers are designed and thoroughly tested to ensure full compatibility and stability to keep you up and running. All these new technologies and features make the ATI Radeon™ HD 3600 series of GPUs the ideal solution for ultimate HD gaming and HD video entertainment with the Windows Vista OS.

February 11th, 2010 at 07:49 am By Alex

This card is wonderful for a mid-range level card!
I can play almost every games, at least with medium details, and still get high frames.

January 10th, 2010 at 06:19 pm By Bogdan

This is a great video card.I can play every game i want.

December 26th, 2009 at 03:07 pm By Theuns

This is by far the greatest agp card i had the only problem is , the hd audio doesn't seem to work. but further this is an excellent agp card!

October 5th, 2009 at 01:06 am By Esen

купил в августе 2009 года. карта полностью соответствует своей стоимости

June 21th, 2009 at 11:17 pm By 777

Отличная видеокарта по качеству и деньгам!Купил 3 месятца назад пока проблем ни каких.СПАСИБО!!!!!
